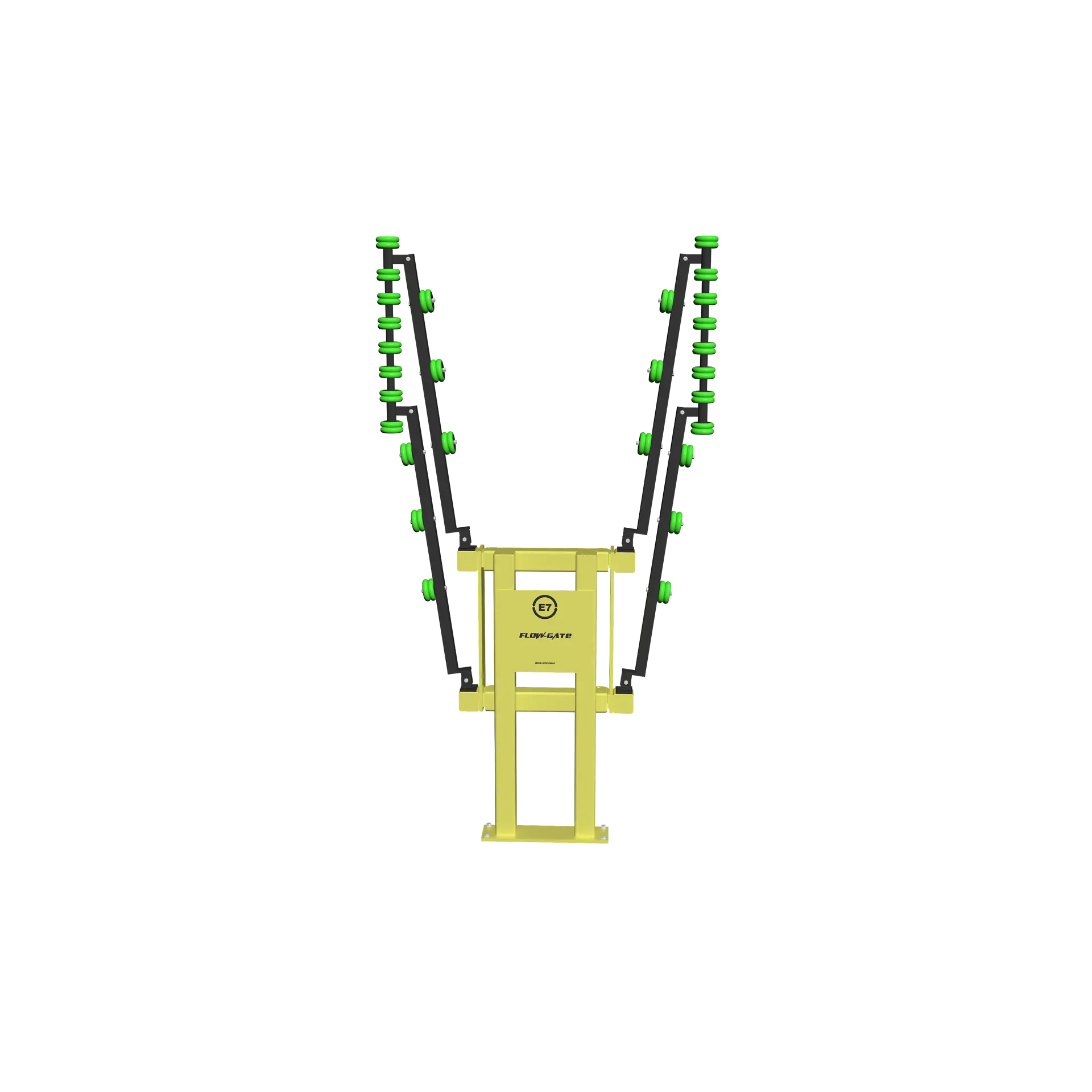

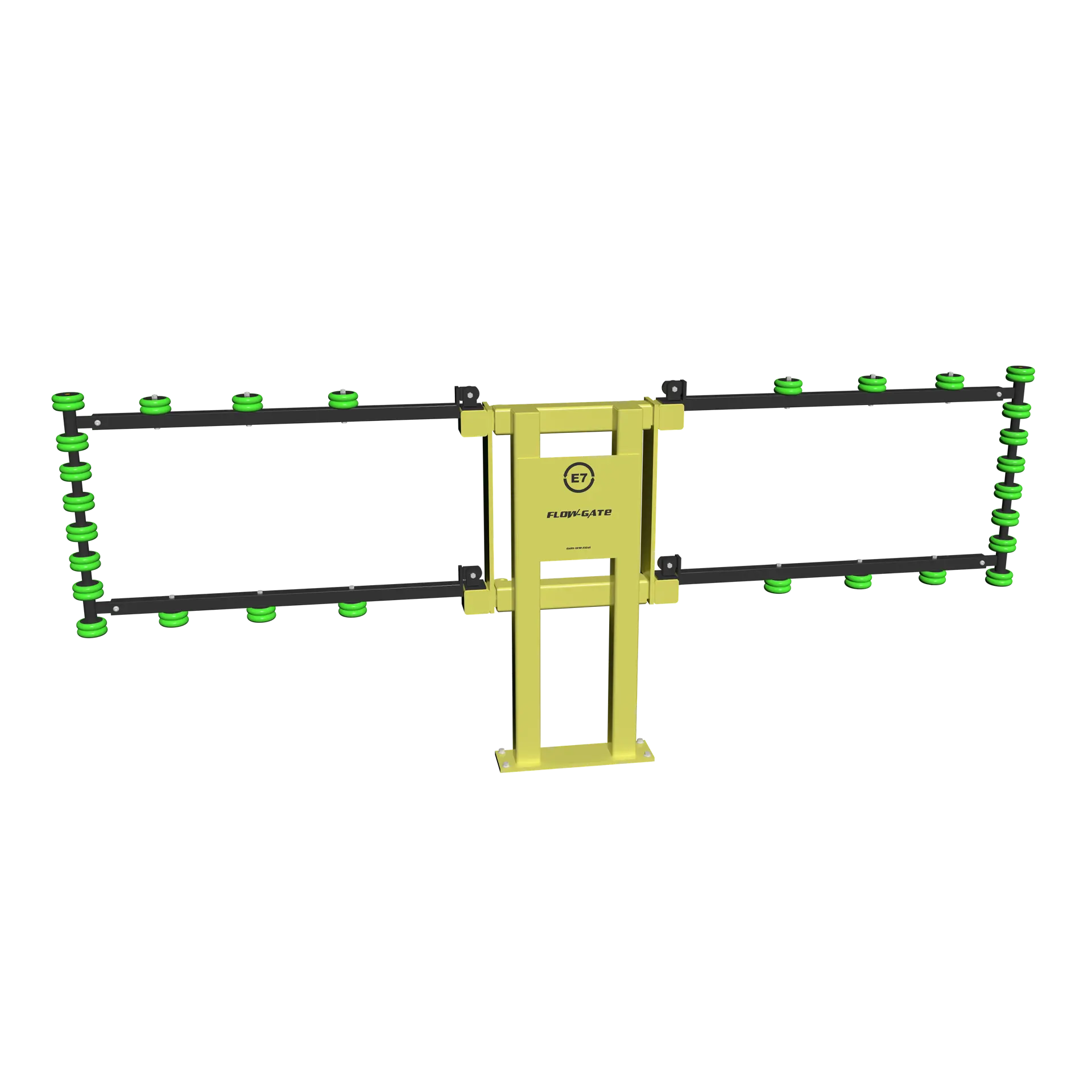

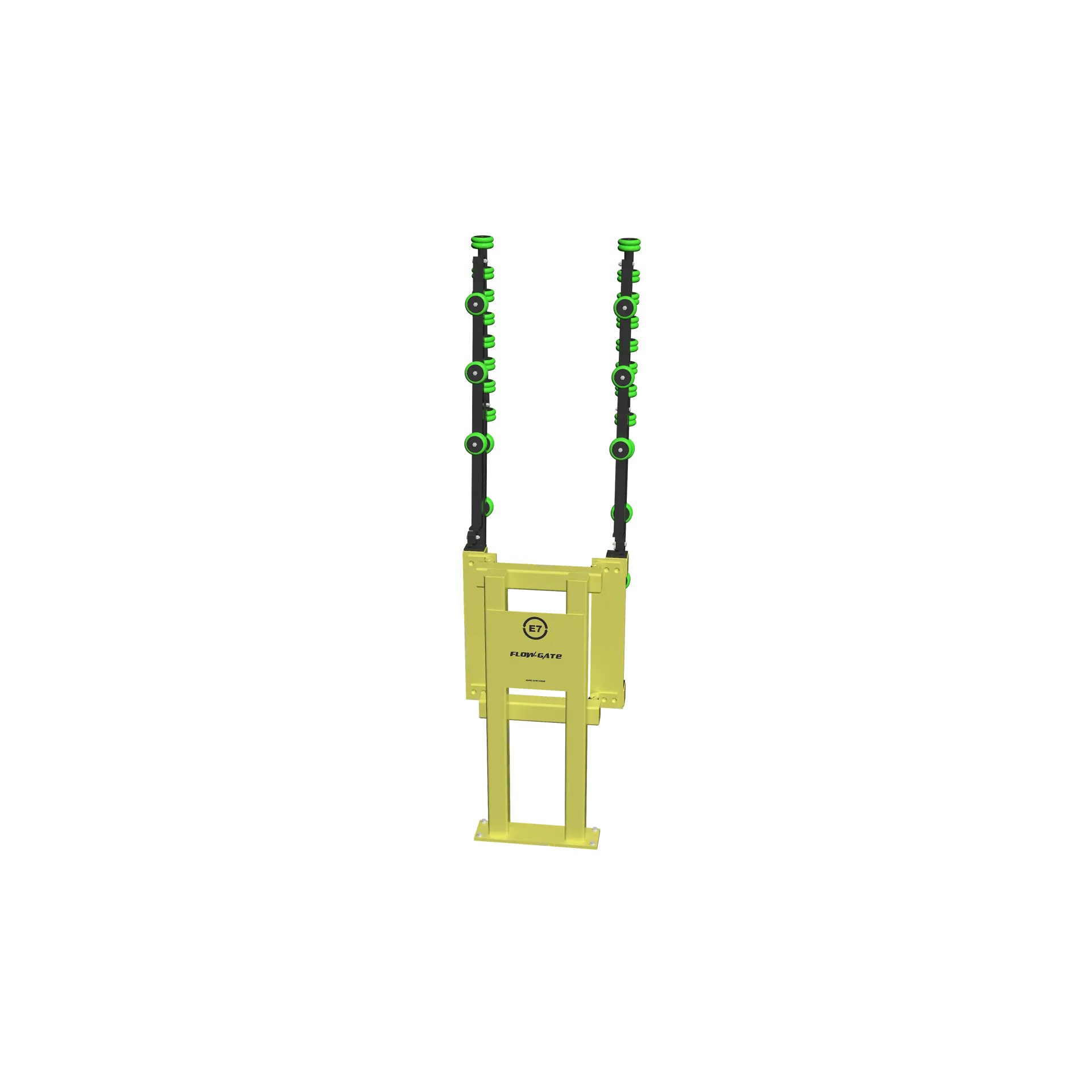

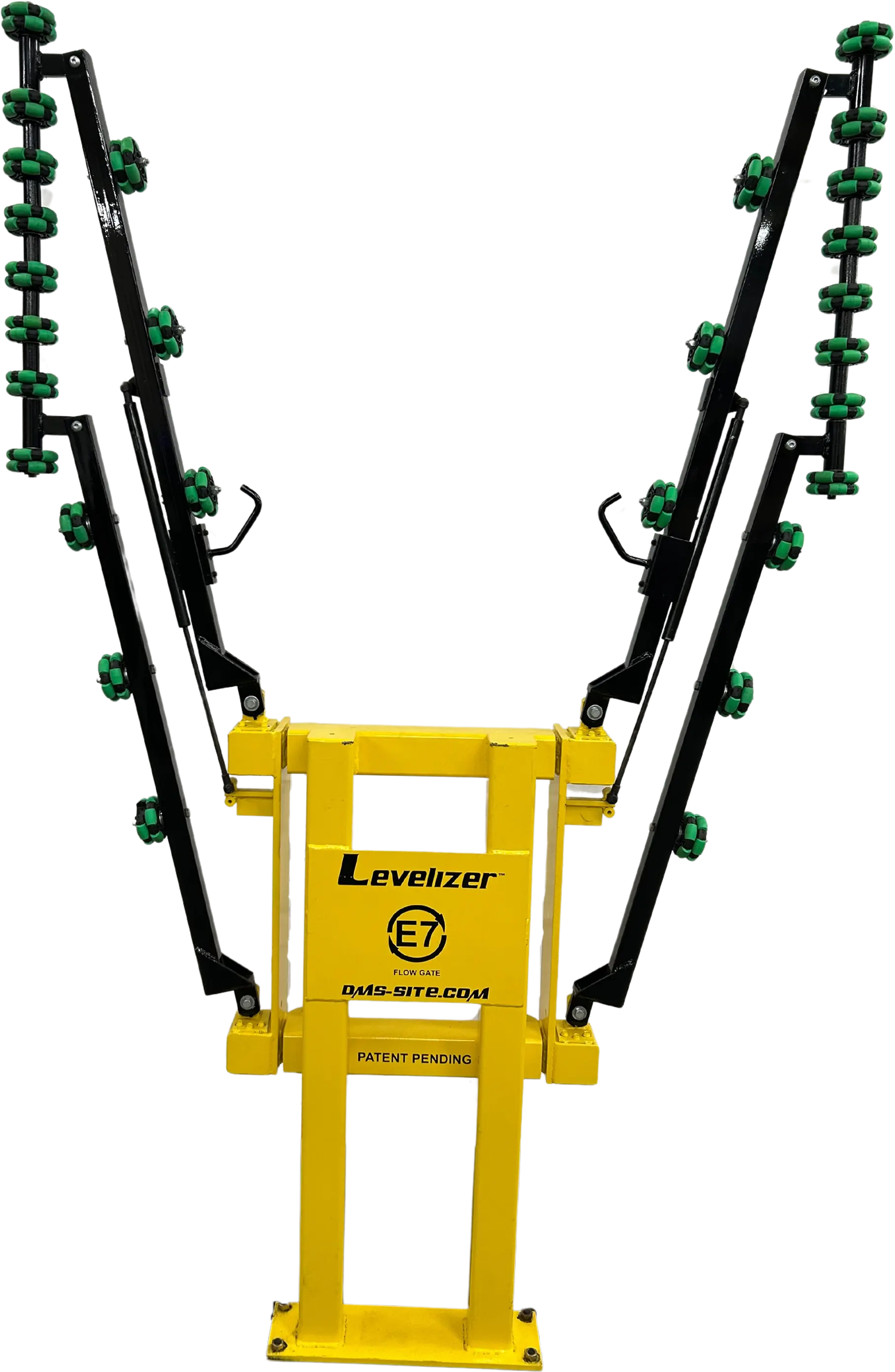

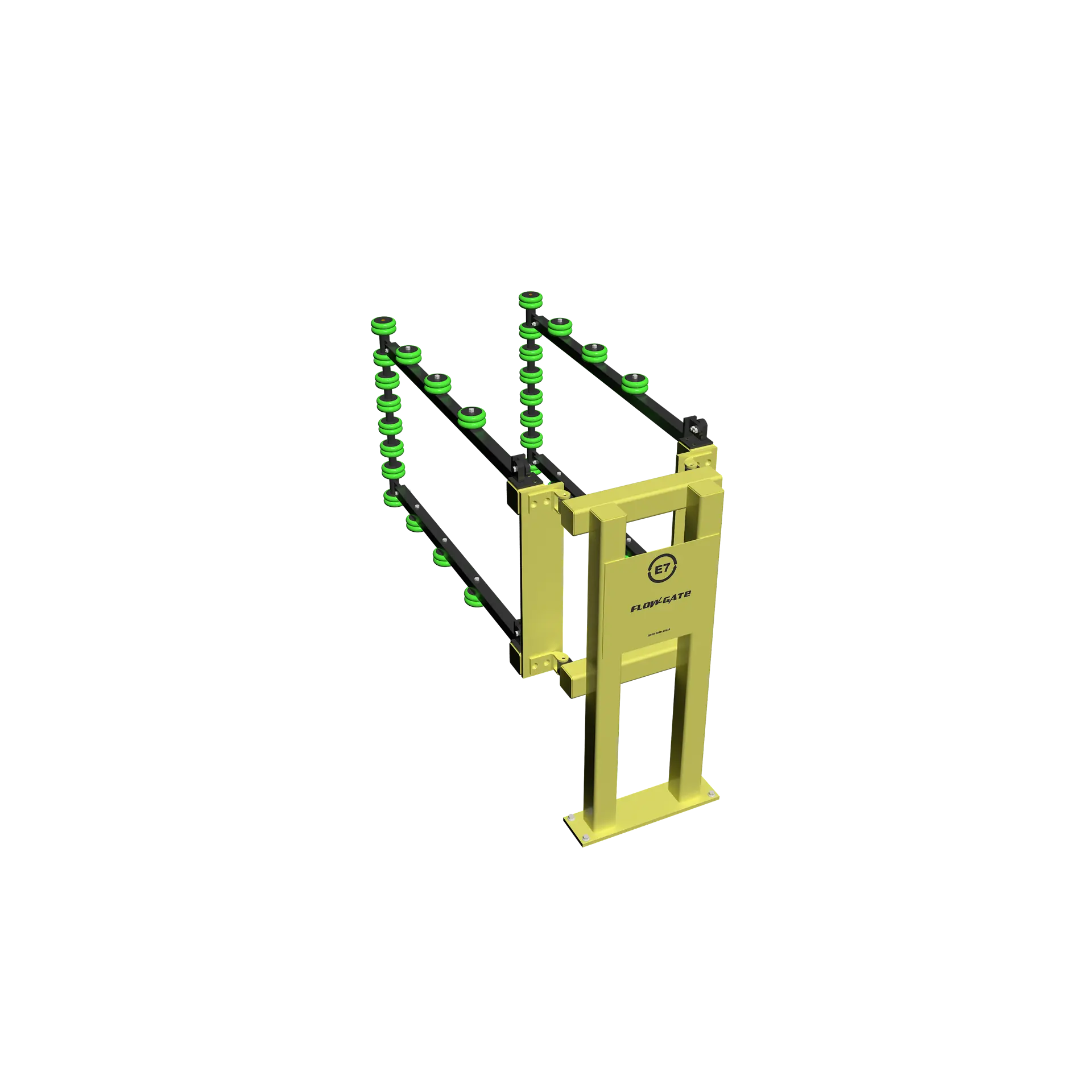

Levelizer® E7 Dual Flow-Gate
Maximum Gate Opening and Full Pallet Access. The Levelizer® E7 Dual Flow-Gate is a patented mezzanine safety gate engineered specifically for high-throughput pick decks and continuous pallet flow applications. Designed to provide maximum gate opening and full pallet access, the Dual Flow-Gate allows efficient material transfer while maintaining continuous protection from the live edge. Unlike conventional mezzanine safety gates that restrict opening width or interfere with product movement, the E7 Dual Flow-Gate is uniquely configured to support dual pallet systems and streamlined loading operations. The result is an engineered fall-protection solution that enhances both safety and workflow efficiency while supporting OSHA 1910.29 compliance.
| Clear Opening Width | 120 in. open area |
|---|---|
| Overall Width | 112 in. (closed) |
| Overall Height (Closed) | 45-1/8 in. |
| Overall Height (Open) | 86-1/2 in. |
| Finish | Standard painted enamel; stainless steel option available |
| Mounting | Bolted or welded installation |
| Cargo Flow | Dual up-and-down; dual pallet system capability |
| Custom Sizes | Customizable to fit virtually any opening |
| Compliance | OSHA 1910.29 |
| Patent | U.S. Patent Pending |
