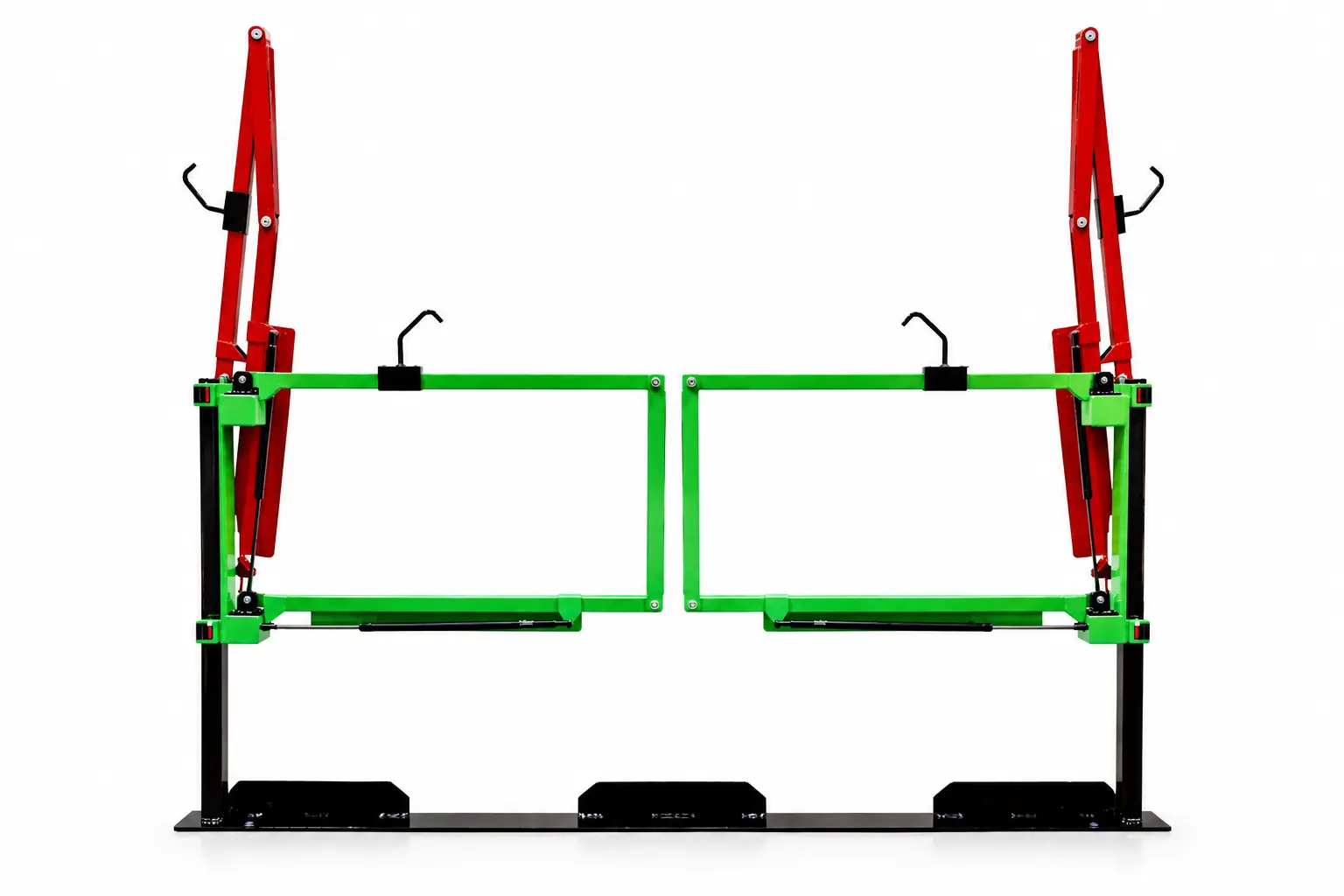

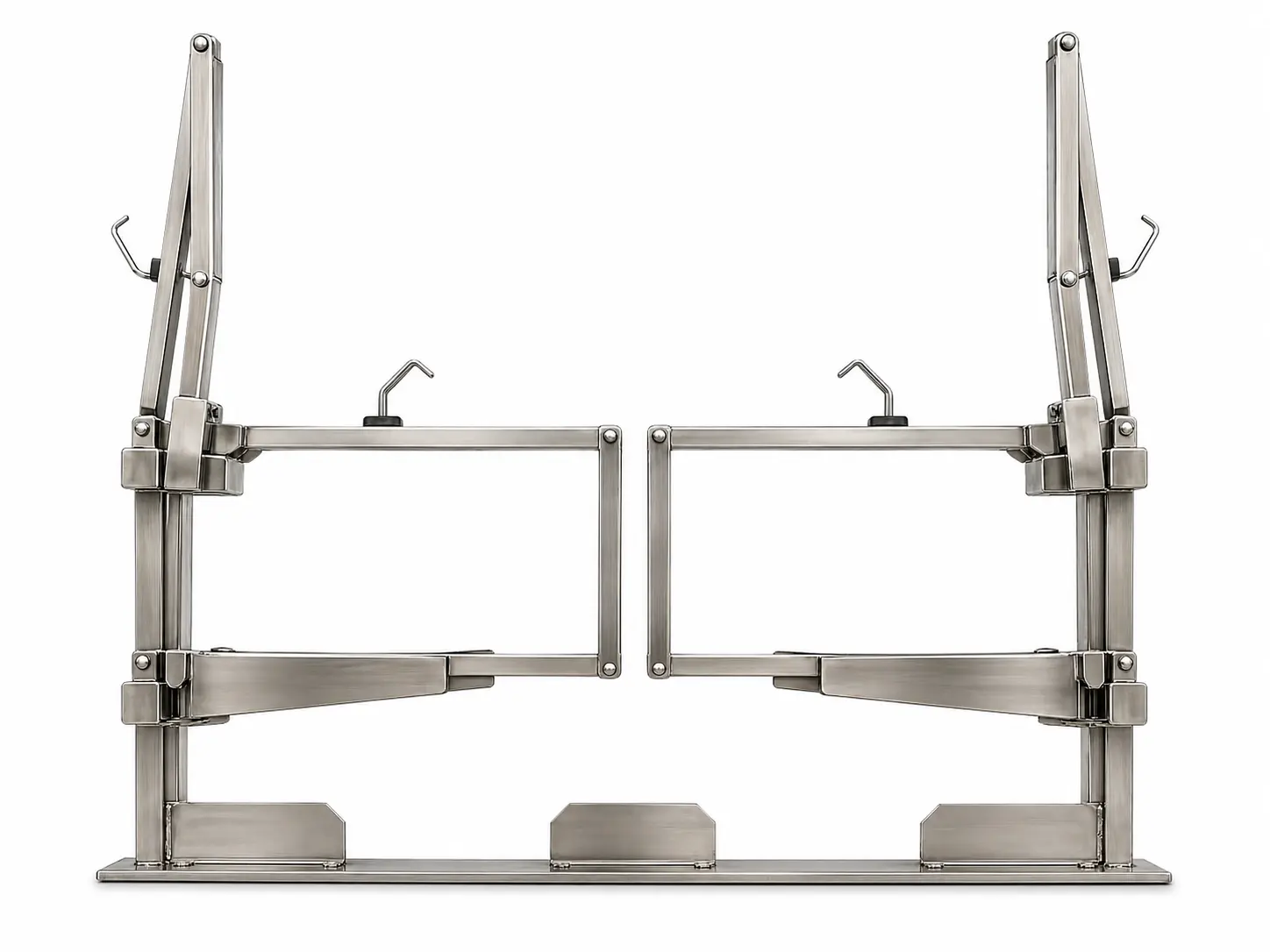

Levelizer® E8 Dual Mezzanine Safety Gate
Dual Mezzanine Safety Gate Designed for Tight Applications. The Levelizer® E8 Mezzanine Safety Gate is a patented dual-gate fall-protection system engineered specifically for mezzanine applications with limited vertical clearance or constrained installation space. Designed to operate at your current platform height, the E8 provides continuous leading-edge protection without requiring structural modifications. With a smaller footprint than the Levelizer® E7, the E8 delivers full pallet access, dual cargo flow capability, and engineered fall protection in environments where space is at a premium. The result is a compact, high-performance solution that supports OSHA 1910.29 compliance while maintaining efficient material handling operations.
| Clear Opening Width | 60 in. standard model; custom sizes available |
|---|---|
| Overall Width | 75.5 in. |
| Overall Height (Closed) | 41 in. |
| Overall Height (Open) | 74-1/4 in. (outside gate); 71-1/2 in. (inside gate) |
| Overall Depth (Closed) | 6-5/16 in. (5 in. base) |
| Mid-Rail Height | 21 in. |
| Base Plate | Built-in toe kick with fork pockets |

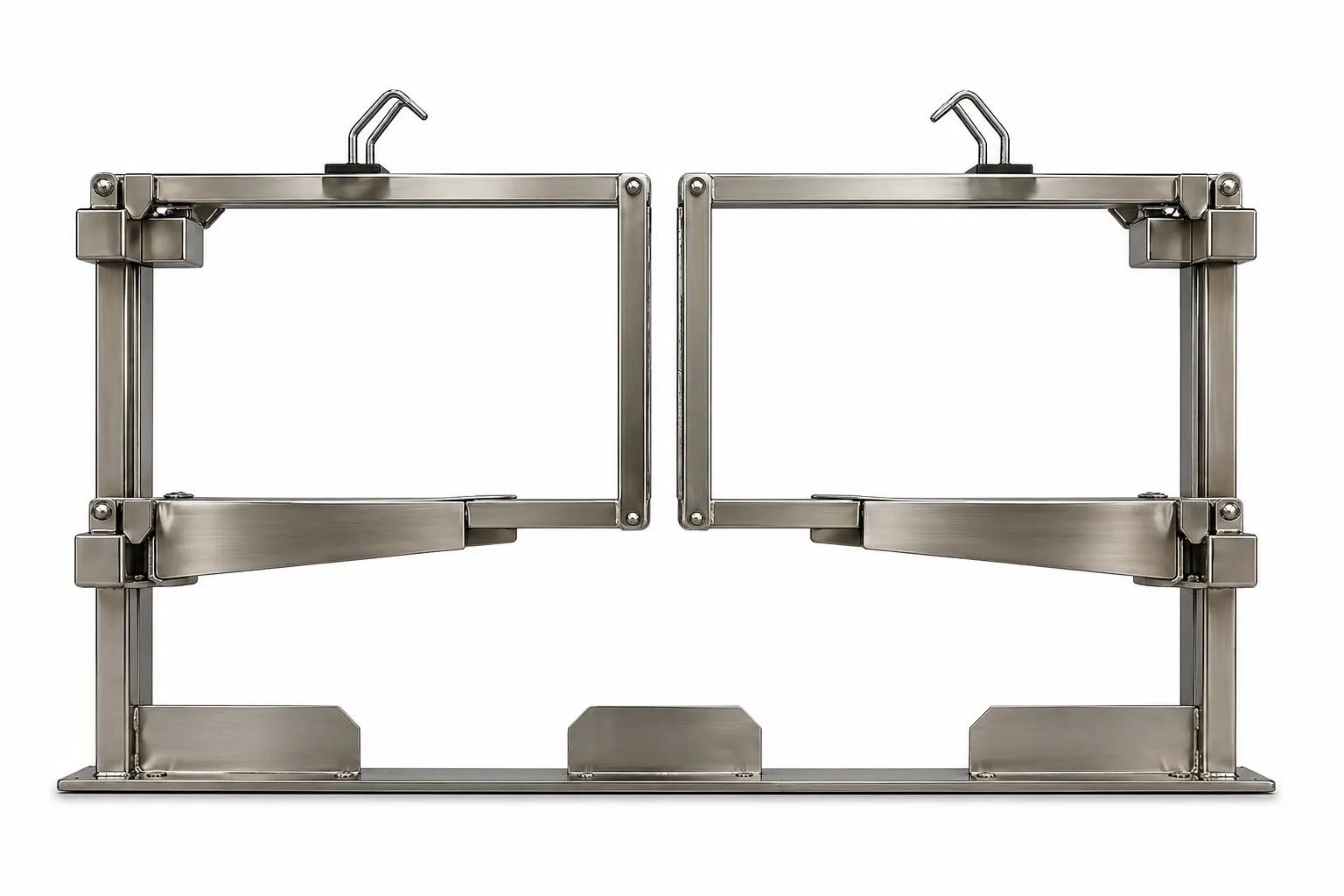

| Finish | Stainless steel option available |
| Mounting | Bolted or welded installation |
| Cargo Flow | Dual up-and-down |
| Compliance | OSHA 1910.29 |
| Patent | U.S. Patent Pending |
| Availability | Stocked standard size; custom sizes available |
